Built for Professional Basketball Venues

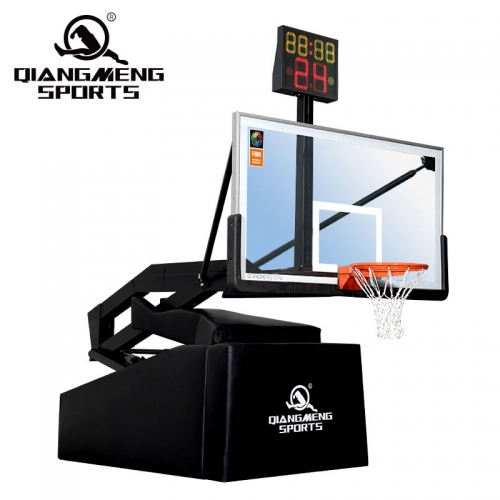

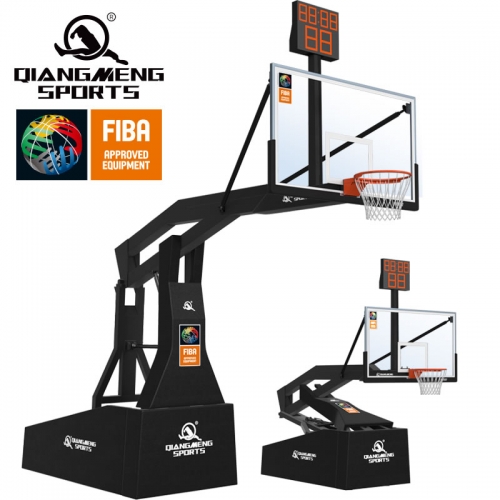

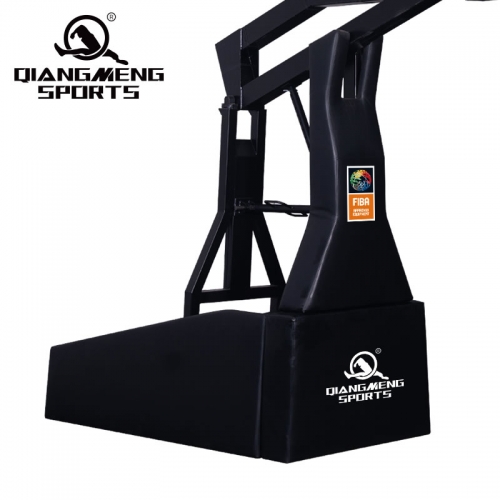

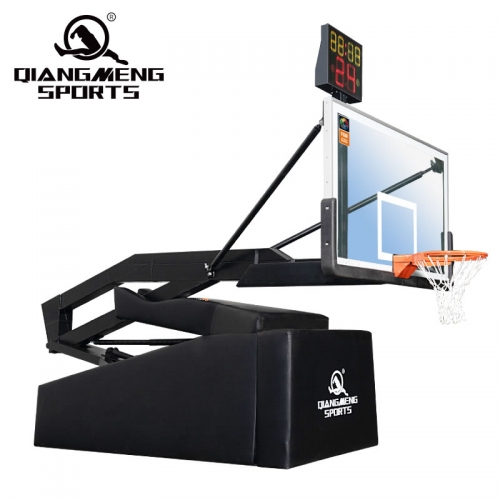

The T-600, also known as the Tank 600, is a FIBA-approved box-base basketball system for major professional events, high-level basketball clubs, top-level professional competitions and teams playing under basketball federation regulations. It combines a microcomputer-controlled electric hydraulic lift with mobile wheels and a stable box base.

With an 800 kg single-unit weight excluding the backboard, a 2400 mm base length and a 2250 mm / 2.25 m overhang, the system is designed for professional installation. The structure is shot blasted and powder coated, with plated connection components and Dacromet fasteners for corrosion resistance and durability.

Key Product Advantages

1. Electric Hydraulic Height Adjustment

The hydraulic cylinder and microcomputer control system support controlled raising, lowering and height adjustment, including calibration to the standard 3.05 m rim height.

2. Professional Backboard and Protection

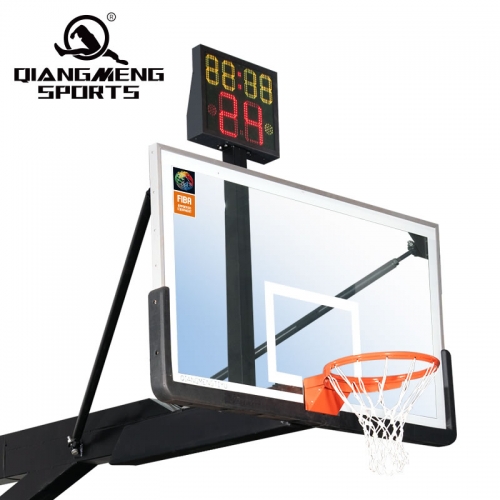

The system uses an 1800 × 1050 × 12 mm tempered-glass backboard with a protective pad and a box-base column protective pad with hook fastening.

3. Durable Structure and Hardware

The 3 mm main tube wall is shot blasted and powder coated. Plated connection components and Dacromet fasteners support corrosion resistance and durability.

4. Customizable Professional Configuration

The overhang can be customized. The 20 mm solid round-steel double-spring rim follows the new national standard. The system is convenient to transport; retain six units per 40-foot container only where suitable for logistics planning.

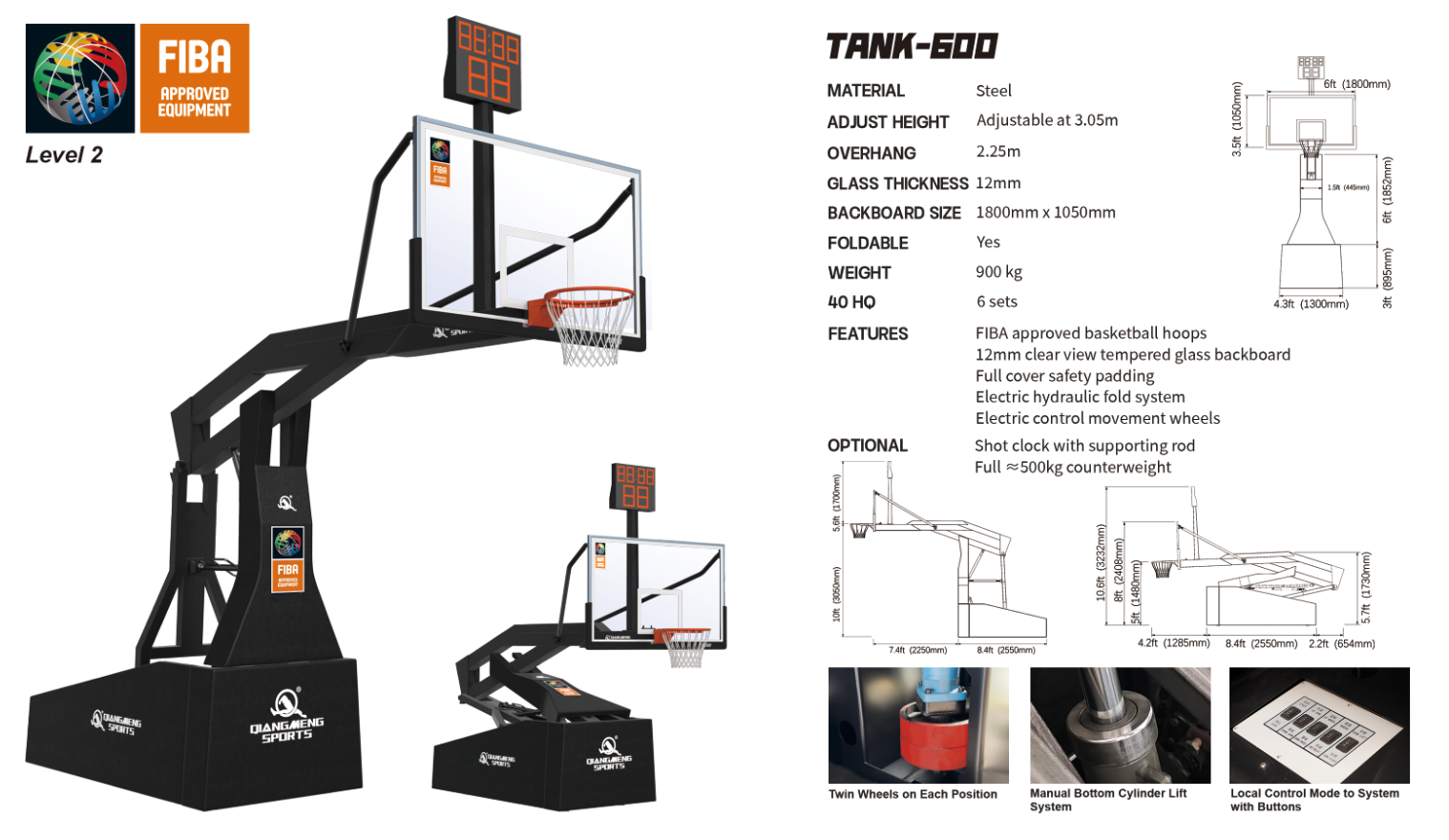

Technical Specifications

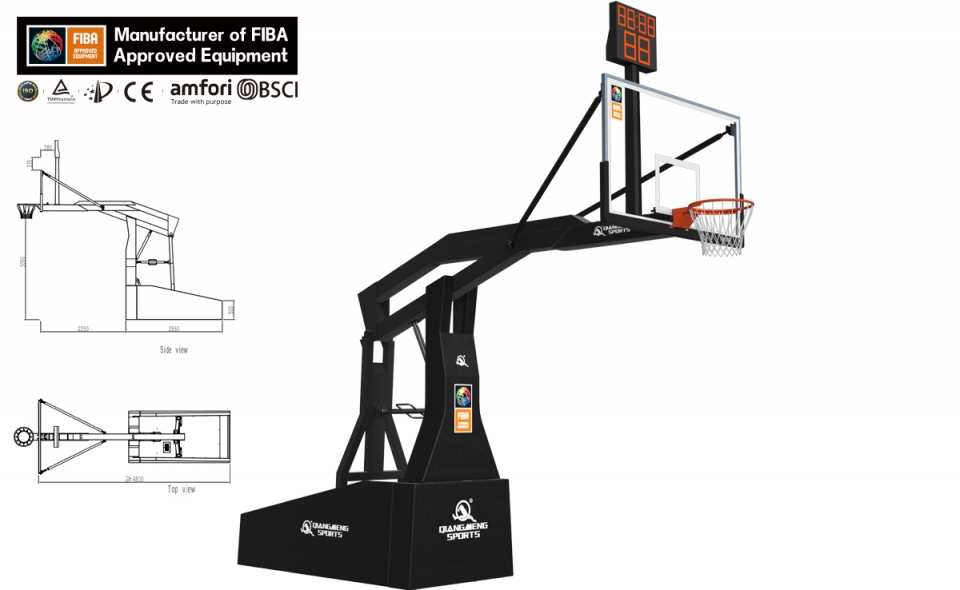

Placement references: from the box-base front edge excluding protective pad to the outside court line: 1100 mm; overall court length reference: 35200 mm; outside-line reserve: 3520 mm.

Recommended Applications

Suitable for major professional events, high-level basketball clubs, top-level professional competitions and teams playing under basketball federation regulations.
