Built for Professional Basketball Venues

The QML-T800, also known as the Tank 800 basketball system, is a professional box-base basketball system for major competitions, advanced clubs, indoor gymnasiums and high-level training venues. It combines electric hydraulic height adjustment with motorized movement, wheel extension and left/right steering.

With a 1,000 kg single-unit weight excluding the backboard, a 2,400 mm base length and a 3,250 mm / 3.25 m overhang, the system is designed for stable professional installation. The steel structure is shot blasted and powder coated, with selected corrosion-resistant connection hardware.

Key Product Advantages

1. Electric Hydraulic Height Adjustment

The hydraulic cylinder and microcomputer control system support automatic raising, lowering and height adjustment.

2. Motorized Movement and Steering

The retractable wheel mechanism supports motorized movement, wheel extension and left/right steering for venue arrangement and storage.

3. Professional Backboard and Protection

The system uses a 1800 × 1050 × 12 mm high-strength tempered-glass backboard with cushioning protection and a protective pad around the box-base column.

4. Durable Steel Structure and Surface Treatment

The main plate is 4 mm and main tube wall is 3 mm. Shot blasting, powder coating, plated connection components and Dacromet fasteners improve durability.

5. Customizable Overhang and Appearance

The overhang, steel-structure color and protective-pad graphics can be customized.

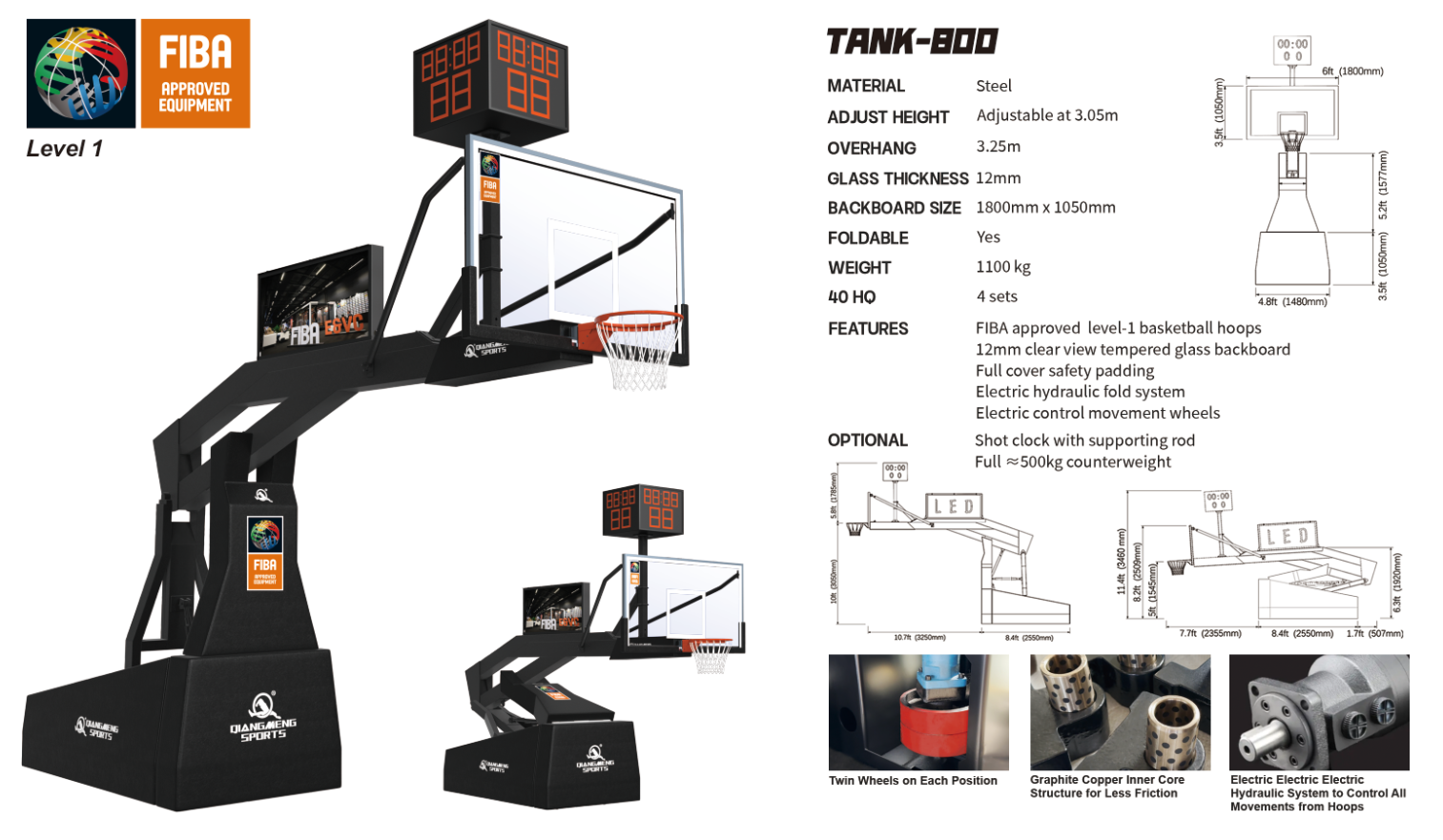

Technical Specifications

Note: Packaging dimensions are subject to actual packing dimensions. Confirm final configuration before ordering.

Recommended Applications

Suitable for professional competitions, high-level clubs, indoor gymnasiums, training centers, schools, universities and institutional sports facilities.
