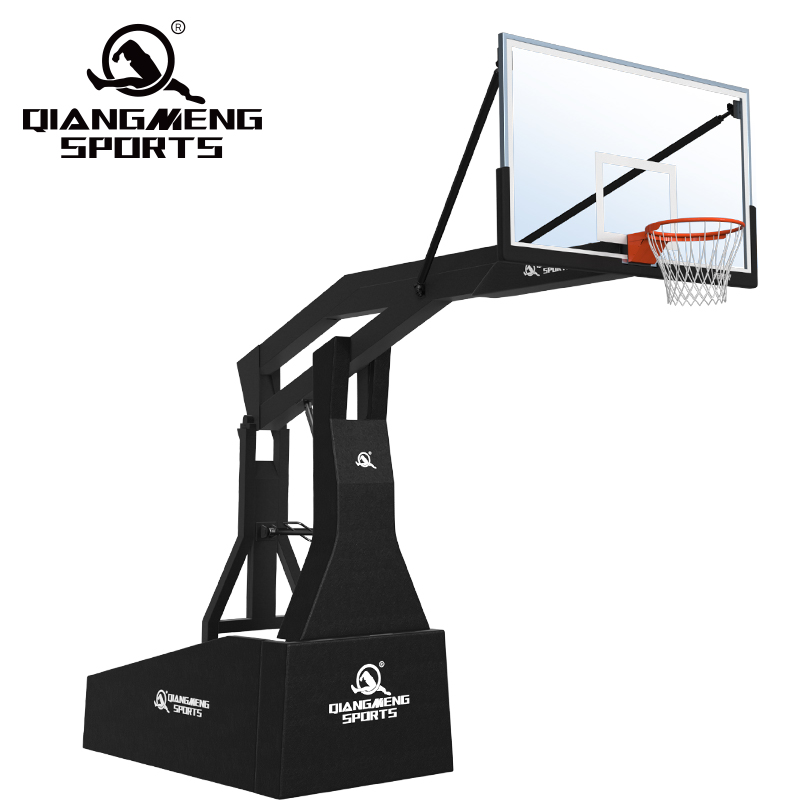

T-600A manual hydraulic basketball stand
Electric Hydraulic Box-Base Mobile Basketball System for Professional Venues
- Application Scenarios: Suitable for elite tournaments, international competitions, and campus recreational activities.
- Lifting & Mobility: Manual hydraulic lift + "fold-to-wheel" mechanism, 2 swivel wheels for quick height adjustment and storage.
- Structure Parameters: 2.2m base + 2.25m arm, hidden counterweight compartment, stable, requires 34.9㎡ space.
- Equipment: 1800×1050×12mm tempered glass backboard (with cover), Φ20 solid steel double-spring rim, standard 3.05m height.
- Customization: Free multi-color powder coating for steel base; backboard custom graphics available.
- Optional Extras: Single/3/4-sided 24s timers, shooting clocks (additional cost).
Contact Us: info@qiangmengtiyu.com
YOU MAY ALSO NEED
Box-Base Mobile Basketball System
The T-600A, also known as the Tank 600A, is a box-base mobile basketball system for professional venues and high-level basketball use. Its electric hydraulic cylinder provides electrically powered hydraulic height adjustment, while the mobile-wheel design supports practical venue arrangement and storage.
The single-unit net weight is 700 kg excluding the backboard. The structure is shot-blasted and electrostatically powder-coated, with plated connection components and Dacromet fasteners for durable daily service.
Key Product Advantages
1. Electrically Powered Hydraulic Height Adjustment
The electric hydraulic cylinder supports smooth, electrically powered hydraulic height adjustment for different training and competition requirements.
2. High-Strength Backboard and New National-Standard Rim
The 1,800 × 1,050 × 12 mm tempered-glass backboard is paired with a new national-standard rim made from 20 mm solid round steel with a double-spring design.
3. Customizable Extension Arm
The 2,350 mm extension arm provides a practical competition layout and can be customized for project requirements.
4. Durable Powder-Coated Structure
The main steel structure is shot-blasted and electrostatically powder-coated. The main plate is 4 mm thick and the main tube wall is 3 mm thick.
5. Dacromet Fasteners and Plated Connections
Dacromet fasteners and galvanized or chrome-plated connection components support reliable assembly and long-term maintenance.
6. Transport-Friendly Mobile Design
Built-in mobile wheels make the box-base system easier to reposition when the specified safety and handling procedures are followed.
Technical Specifications
| Specification | Value |
|---|---|
| Model | T-600A / Tank 600A |
| Product Type | Box-Base Mobile Basketball System |
| Single-Unit Net Weight | 700 kg, excluding the backboard |
| Mobility | Mobile wheels |
| Height Adjustment | Electric hydraulic cylinder; electrically powered hydraulic height adjustment |
| Base Box Length | 2,200 mm |
| Extension Arm | 2,350 mm |
| Base Front Edge to Outside of Sideline | 1,100 mm, excluding the protective cover |
| Overall Court Length Limit | 35,200 mm |
| Outside-Line Reserve | 3,520 mm |
| Backboard | 1,800 × 1,050 × 12 mm tempered glass |
| Column Protection | Box-base column protective padding, hook fastening |
| Rim | New national standard; 20 mm solid round steel; double spring |
| Surface Treatment | Shot-blasted and electrostatically powder-coated tube and steel structure |
| Connection Components | Galvanized or chrome-plated; Dacromet fasteners |
| 24-Second Shot Clock | Not included; single-sided, three-sided or four-sided configurations optional |
| Container Loading | 6 systems per 40-ft container |
Product Components
Upright / column
Extension arm
Rim and backboard
Protective padding
Screws / hardware
Instruction manual
Base box
Recommended Applications
Suitable for large professional competitions, advanced basketball clubs, professional-level basketball games and high-level basketball matches. Confirm the venue layout and safety clearances for the selected installation.
Optional Configuration
The 24-second shot clock is not included. Single-sided, three-sided and four-sided 24-second shot-clock configurations are available as optional configurations.
Space Planning, Installation and Safety
Installation and space planning: Install on a hardened, level surface; do not place the system on soft or muddy ground. Add the full specified ballast according to the instruction manual and never reduce the ballast. Keep at least 2 m behind the sideline and at least 4 m in front as safety space. The rim height is 3.05 m.
Fit spring washers to the bolts and tighten diagonally in stages. Install cushioning pads between the backboard and its mounting points. Fit impact-protection padding to corners and columns. After installation, check for any risk of tipping.
Safe use and maintenance: Never hang people from the rim, climb on the system or impact the backboard violently. Children must use the system under adult supervision. Before each use, check the bolts and ballast. Tighten fasteners regularly and touch up any damaged paint. Do not move the system by dragging it directly; use the mobile mechanism correctly. Avoid use in strong winds whenever possible.
Stop using the system immediately if the frame shakes, the backboard is cracked or the base box is damaged. Resume use only after inspection and repair have been completed and the system is confirmed safe.
