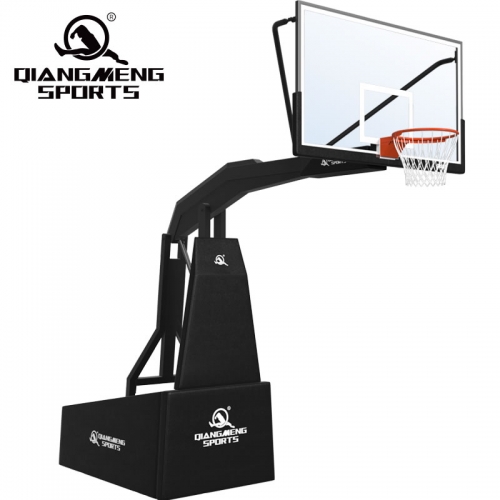

Tank T100 stationary box-base basketball system

Tank 100 stationary basketball system for schools and small venues

Box-base stationary basketball system for schools and small venues; 320 kg excluding backboard, 12 mm tempered glass backboard, no movement and no height adjustment.
Shot-blasted and powder-coated structure
2.25 m overhang and 1900 × 1100 mm base dimensions
20 mm solid round steel double-spring rim

Tank 100 Stationary Basketball System

Built for Basketball Venues

The T100, also known as the Tank 100 basketball system, is a Box-Base Stationary Basketball System for schools, basketball courts, gyms and small venues. Its reinforced steel structure is designed for dependable fixed placement.

With a 320 kg single-unit weight excluding the backboard, 1900 × 1100 mm base dimensions and a 2250 mm / 2.25 m overhang, the system is designed for stable installation. The structure is shot blasted and powder coated.

Key Product Advantages

1. Reinforced Box-Base Construction

The reinforced box-base structure supports stable fixed placement for basketball venues.

2. Stationary Venue Installation

The T100 has no movement function and is designed as a stationary basketball system.

3. Tempered-Glass Backboard and Protection

The system uses a 1800 × 1050 × 12 mm tempered-glass backboard with a protective pad.

4. Durable Steel Structure and Surface Treatment

The main plate is 2.5 mm and the main tube wall is 2.5 mm. Shot blasting and powder coating provide the specified surface treatment.

5. Venue-Specific Overhang and Finish

The 2250 mm / 2.25 m overhang and protective-pad finish can be confirmed for the venue project.

Technical Specifications

Specification	Value
Model	T100 / Tank 100
Product Type	Box-Base Stationary Basketball System
Product Name	Tank 100 basketball system
Single-Unit Weight	320 kg excluding backboard
Base Dimensions	1900 × 1100 mm
Overhang / Arm Length	2250 mm / 2.25 m
Placement	1000 mm from box-base front edge excluding protective pad to outside court line
Court Length	34000 mm
Outside Reserve	2950 mm
Backboard	1800 × 1050 × 12 mm tempered glass with protective pad
Rim Height	3.05 m
Movement	None; stationary
Height Adjustment	No
Height Adjustment Method	None
Main Plate Thickness	2.5 mm
Tube Wall Thickness	2.5 mm
Surface Treatment	Shot blasting and powder coating
Rim	20 mm double-spring rim

Product Components

Box base
Column
Extension arm
Backboard and basketball rim
Protective pad
Screws and hardware accessories
Instruction manual

Recommended Applications

Suitable for schools, basketball courts and gyms, and small venues.

Optional Configuration

Customizable overhang / arm length and protective-pad finish, subject to project confirmation. No height-adjustment method is provided.

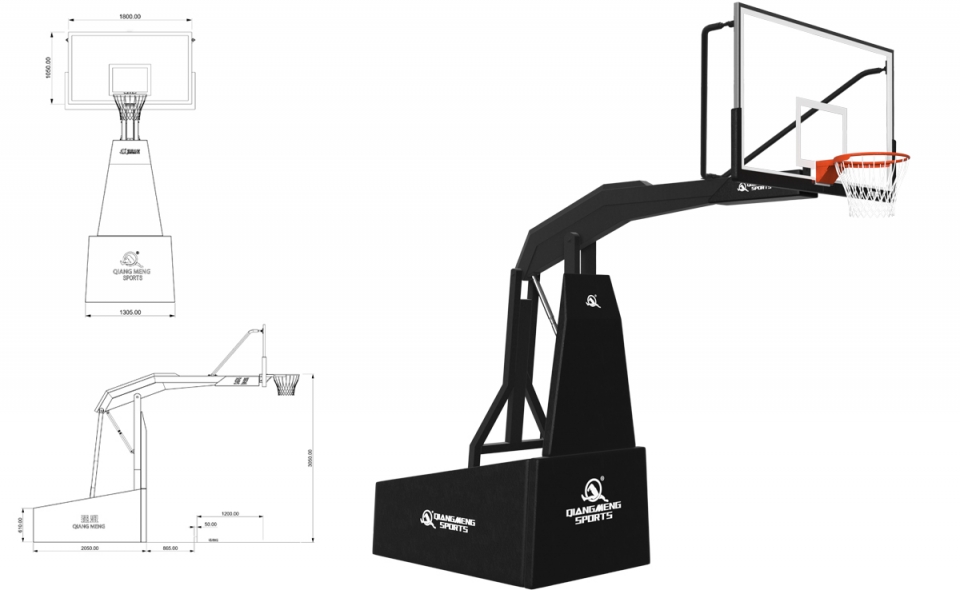

Space Planning, Installation and Safety

Key planning references: Base dimensions: 1900 × 1100 mm. Overhang: 2250 mm / 2.25 m. Rim height: 3.05 m. Placement: 1000 mm from the box-base front edge excluding the protective pad to the outside court line. Court length: 34000 mm. Outside reserve: 2950 mm.

Install the system on a hardened and level surface, add the specified ballast, and check the bolts, ballast and protective padding before use.

Do not climb on the structure, hang on the rim or drag the system. Stop use if the system is unstable or damaged, or during unsafe weather conditions.

Product Video

No product video is specified.
